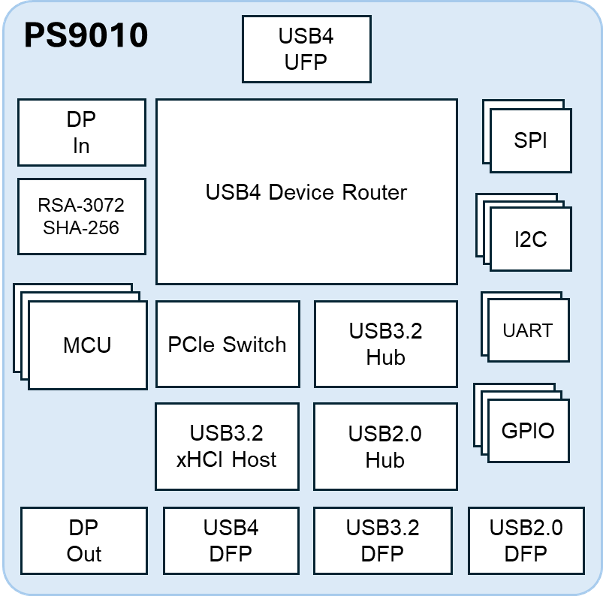

The PS9010 is a highly integrated USB4 dock controller designed to manage data and video across multiple protocols. It features full support for USB4, Thunderbolt 3 (TBT3), USB3.2, DisplayPort 2.1, and PCIe tunneling, making it suitable for a wide range of high-speed peripheral applications. With one USB4 upstream port and multiple downstream ports including one USB4, PS9010 facilitates seamless connectivity between devices while ensuring compliance with USB4, USB3.2, and DisplayPort Alt Mode.

Built on Parade’s advanced IP, the PS9010 supports low-power modes, PCIe/USB3.2/DisplayPort tunneling, and simultaneous data transfer across USB and DisplayPort interfaces, making it an ideal choice for USB4 docks, monitors, and external peripherals. The PS9010 also features integrated security blocks for SHA-256 and RSA-3072 hardware-based algorithms, ensuring secure firmware updates.

Key Features

  • USB4 1.0-Compliant upstream and downstream ports
  • Integrated USB 3.2 and USB 2.0 hubs
  • Integrated xHCI controller and PCIe switch for TBT3 compatibility
  • DisplayPort 2.1 Alternate Mode Support (up to 8K UHD 60Hz)
    • DP2.1 transmitter support DP 1/2/4 lanes, with link rates up to UHBR20
    • DP2.1 receiver support DP 1/2/4 lanes, with link rates up to UHBR20
  • Rich features for Dock Management
    • Three I2C Master/Slave Ports
    • Two SPI Master/Slave Ports
    • UART for debugging
    • Rich GPIO functionality
    • Supports secure firmware update for external devices with single SPI flash
  • Firmware Security Protection
    • HW based RSA3072 signing
    • HW based SHA-256 authentication
  • On-chip MCU with external SPI ROM interface
    • Supports firmware upgrade via I2C and USB
    • Firmware Security Protection
  • Up to three I2C supporting both master and slave interfaces
  • Up to two SPI supporting both master and slave interfaces
  • 3.3V and 0.9V power supplies
  • Flexible GPIOs include one PWM output
  • Package: 8.5mm x11.5mm LFBGA 274

Applications

  • Docking stations
  • Multi-port adapters
  • Smart displays and monitors
  • All-in-one PCs
