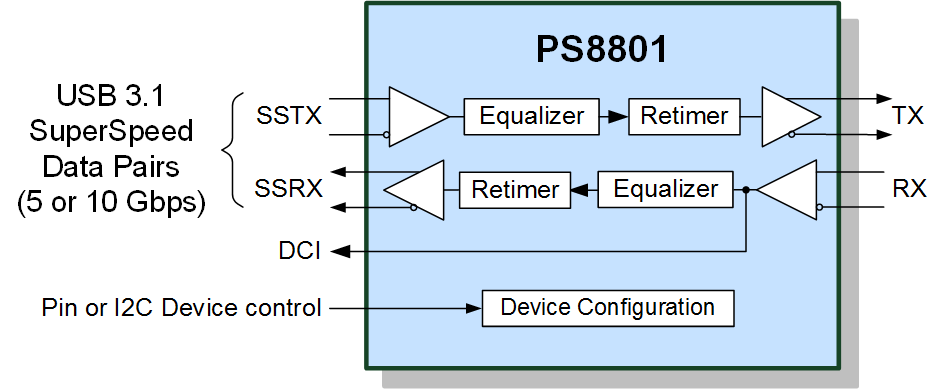

PS8801 – Single Port USB 3.1 10Gb/s Bidirectional Retimer with DCI Support

Not Recommended for New Designs; Please refer to the PS8811.

APPLICATIONS

  • Notebooks and PCs
  • Tablets and Mobile Devices
  • Docking Stations and Active Cables

KEY FEATURES

  • Supports USB 3.1 Gen2 (10Gbps) Retiming
  • Supports USB 3.1 full power management with automatic power saving
  • CrystalFree – no external crystal or clock needed
  • High input jitter tolerance and low output jitter
  • UniEye™ Equalizer to compensate for channel loss
  • Very low latency
  • DCI support
  • Low active power consumption
  • Ultra-low standby power consumption
  • 6×4 mm 40-pin QFN Halogen free RoHS Package
  • 3.3V (I/O) and 1.2V (core) power supplies
  • ESD: Human Body Mode 4kV
