PS8811 – Single Port USB 3.1 Gen 2 10Gbps Bidirectional Retimer with DCI Support

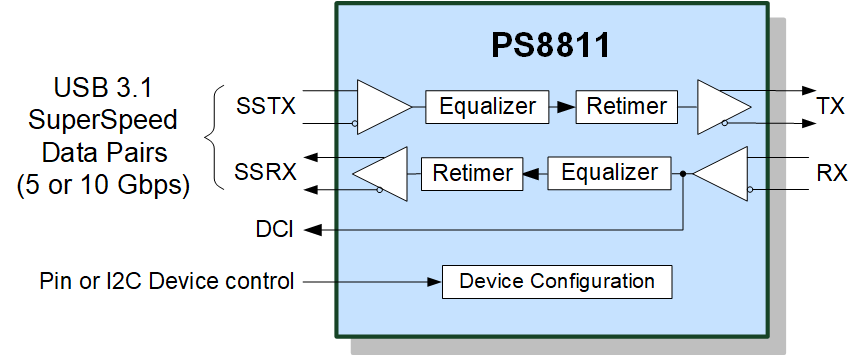

The PS8811 is a one-port bidirectional USB 3.1 Gen 2 retimer that integrates the UniEye equalizer and a retimer to re-condition USB 3.1 signals for long media link applications. It supports USB 3.1 Gen 2 with operation speed up to 10Gbps as well as Gen 1 operation at 5Gbps. The PS8811 supports Intel DCI (Direct Connect Interface) for closed chassis debugging over an external USB port.
APPLICATIONS
- Notebooks and PCs
- Tablets and Mobile Devices
- Docking Stations and Active Cables
KEY FEATURES
- Supports USB 3.1 Gen2 (10Gbps) Retiming
- Supports USB 3.1 full power management with automatic power saving
- CrystalFree – no external crystal or clock needed
- High input jitter tolerance and low output jitter
- UniEye™ Equalizer to compensate for channel loss
- Very low latency
- DCI support
- Low active power consumption
- Ultra-low standby power consumption
- 4.2×4.2 mm 36-pin QFN Halogen free RoHS Package
- 3.3V (I/O) and 1.2V (core) power supplies
- ESD: Human Body Mode 7kV
