TC3410-AS is an integrated Multi-touch Controller and eDP Timing Controller embedded driver (tTED) for in-cell TFT panel that incorporates gate drivers in panel (GIP) and source de-multiplexers. It provides the GIP control high voltage signals with embedded level shifters. The gamma correction circuit allows adjustment to panel characteristics to optimize the display quality.

TC3410-AS supports 4 lanes eDP1.5 input up to 5.4G bit rate and 1926 channels source driver output.

TC3410-AS implements eDP1.5 Multi-Stream Operation (MSO) for two chip display synchronization. The touch control and processing synchronization is excecuted by SPI interface.

TC3410-AS is designed for COG (Chip on Glass) assembly.

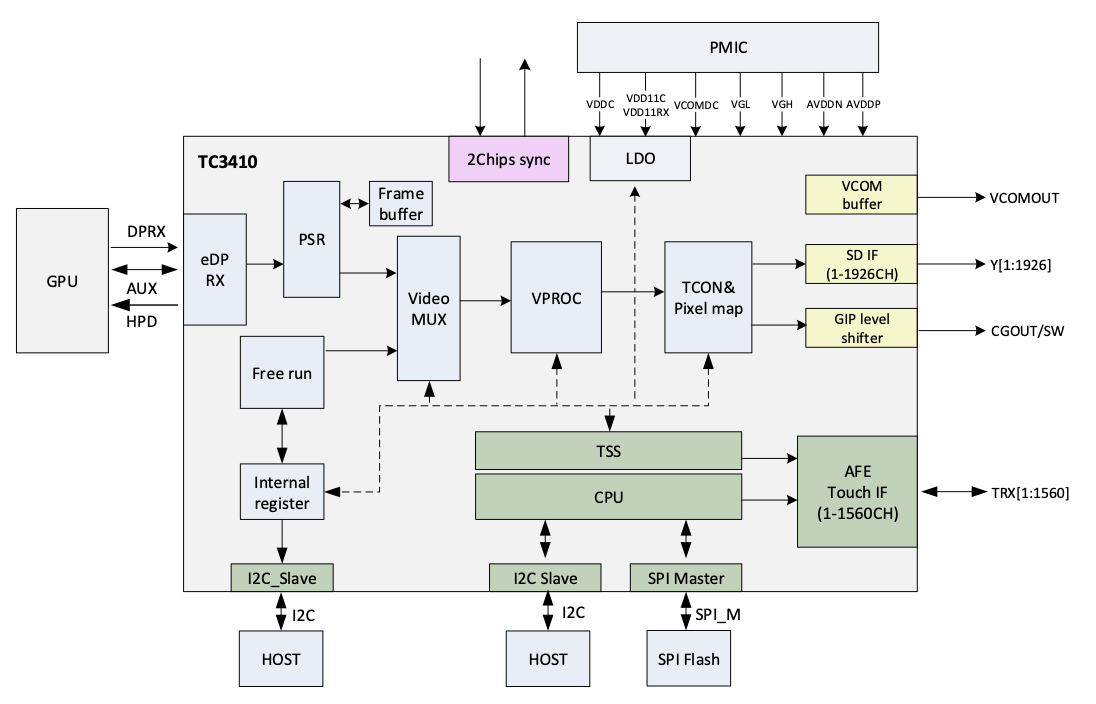

Functional Block Diagram



Key Features

  • TCON FEATURES
  • DisplayPortTM Input: eDP 1.5 compliant; 1/2/4 lanes (max 5.4Gbps/lane); link training options; 18/24/30-bit RGB; MSO, SSC 0.5% down spreading
  • PSR: Supports PSR/PSR2 (eDP v1.3/1.5), Intel MBO, AMD FreeSync PSR; up to 2160×1440 (single chip)/2880×1800 (MSO two chips)
  • Refresh Rate: DRR+PSR coexistence; IIDT LRR/ALRR/UBRR; AMD FreeSync, VESA Adaptive Sync
  • Protection: eDP ASSR authentication
  • Panel Interface: Up to 1920×1200@120Hz (single chip), 2160×1440@90Hz (single chip), 2880×1800 (MSO); 18/24-bit RGB
  • TCON Interface: MUX3-6/dual/triple-gate; programmable timing; AUX-less ALPM, low-voltage HPD
  • Video Processing: SPIROM-stored LUT (Gamma/Color/FRC); BIST/aging patterns; Dell eSOL Gen2/3
  • HDR: HDR400 support
  • Backlight: Smart-BacklightTM (color/power optimization)
  • SOURCE DRIVER FEATURES
  • 1926 channels; 6/8-bit color depth (64/256 gray scale)
  • 22 programmable gamma buffers; main/Gamma buffer chopping
  • Column inversion only
  • Output Voltage: VGHO 7-20V, VGLO AVDDN-0.5V~-15V (VGHO-VGLO=35V)
  • Level Shift: 22 GIPs +12 control signals per side
  • VCOM: 0.5V~-2.5V (10mV step); power saving support
  • TOUCH FEATURES
  • 10-finger multi-touch; 120Hz report rate; up to 16-inch screen
  • 1560 touch signals +260 AFEs; passive/Wacom WGP active stylus (palm rejection)
  • Water/wet finger tracking; noise suppression
  • On-glass TPMUX2/3 (up to LTPS MUX6); Windows HLK/Chrome AVL compliant
  • Dedicated VTSP 3.3V pin (internal LDO for VTSP18)
  • MISCELLANEOUS
  • Interfaces: I2C (register/host comm), SPI (external flash)
  • Power Supplies: VDDC 1.8V, VDD11 1.1V, VDDIO33/VTSP33 3.3V, AVDDP 4.5-8.0V, AVDDN -8.0~-4.5V, VGH 7-20V, VGL AVDDN-0.5V~-15V, VCOMDC 0.5~-2.5V
  • ESD: HBM ±3000V, MM ±300V



Applications

  • eDP 1.5 tTED solutions for in-cell LCD panels
