TC3300 – 1080-Channel 8-bit MIPI DSI Touch and Display Driver Integrated Controller for LTPS LCD

LTPS LCD controller and driver with an integrated multi-touch capacitive touchscreen controller

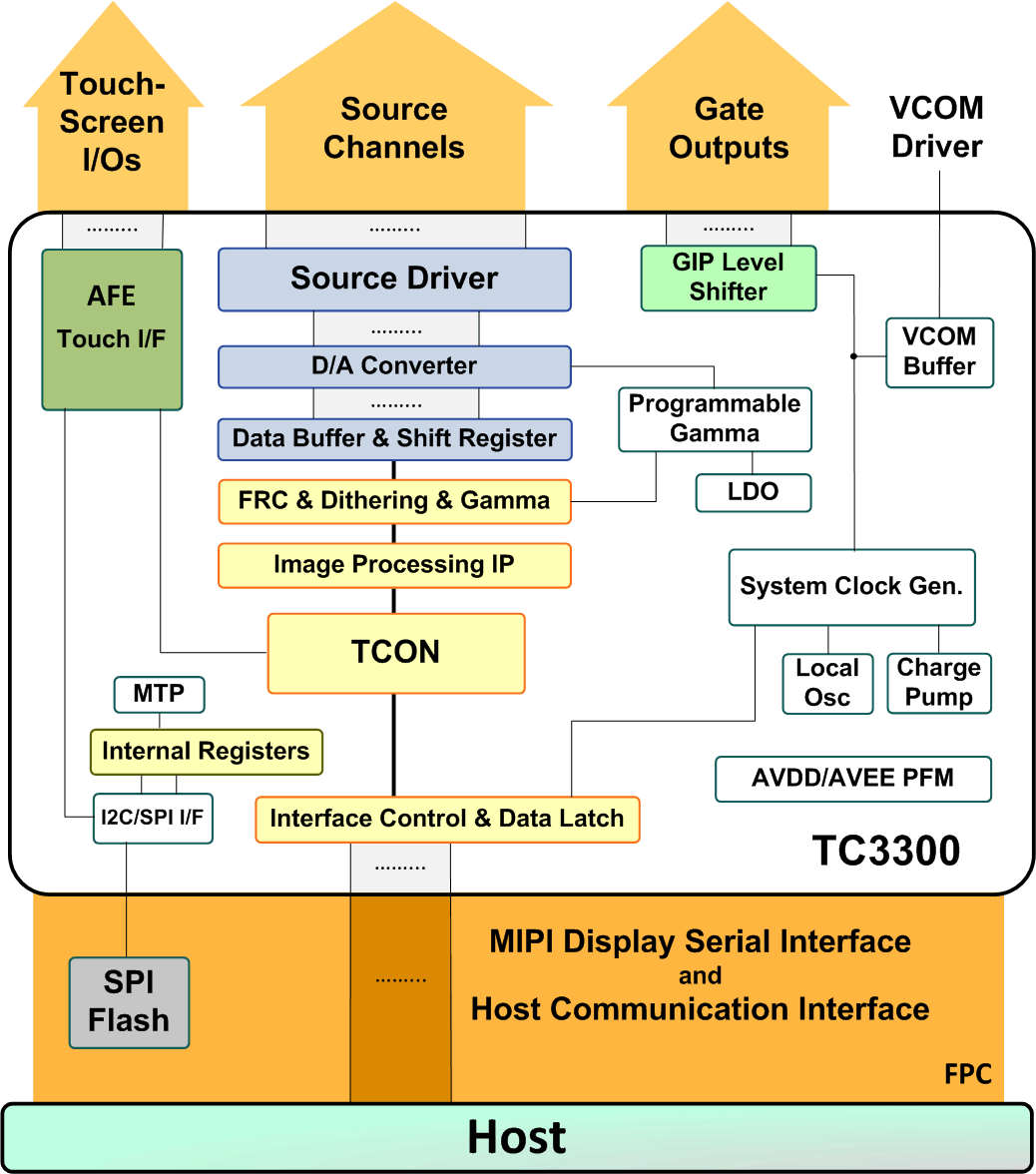

TC3300 is a controller and driver for a LTPS LCD with an integrated multi-touch capacitive touchscreen. It supports gate drivers in panel (GIP) and 1:3 source de-multiplexers. It provides the GIP power supply and GIP control high voltage signals with embedded level shifters. Its 1080 output channels offer 256 gray-scale voltages for both positive and negative polarity. The gamma correction circuit allows adjustment to panel characteristic to optimize the display quality.

TC3300 supports MIPI-DSI v1.1 interface with 4 lanes and resolution up to Full HD 1080RGBx1920. The data rate up to 1Gbps per data lane.

TC3300 integrates MTP ROM for initialization setting, Gamma, VCOM and ID1/2/3 which can be rewritten 3 times. The data is loaded from MTP during the starting process of display.

TC3300 integrates Parade’s exclusive Smart-Backlight™ function for color and power optimization. It reduces the total power consumption of display module.

TC3300 is designed for COG (Chip on Glass) assembly, with an integrated touch screen display below 6 inches (4mm pitch). It is suitable for compact and medium-sized portable solutions such as tablet PC and smart phones.

The TC3300 combines the high SNR and noise immunity of TrueTouchTM technology with the display driver to provide premium touch features to the mass market. The TrueTouchTM firmware intelligently switches between display and touch scan modes to manage power while maximizing SNR.

KEY FEATURES

Display Controller and Driver

  • Single-chip 1080 channel RAM-less display controller and driver for 16,777,216 color LTPS LCD with integrated multi-touch touchscreen control
  • Supported Display Resolution
    • 1080RGB x 1920
  • MIPI Input Interface
    • Compliant to MIPI DSI v1.1, D-PHY v1.1 and DCS v1.1
    • Scalable data lanes. Options for 1, 2, 3 or 4 data lanes with a transmission rate up to 1Gbps/lane
    • Video Mode
  • Digital Image Processing Features
    • Full color mode (16.77M-colors) or Reduced color mode (262K/65K-colors)
    • Color engine for Hue/Saturation/Favorite color adjustment
    • Edge Enhancement
    • Smart Contrast
    • Skin Color Preservation
    • White Point Adjustment
    • Separate RGB Programmable gamma correction
    • Global gamma voltages adjustment
  • Smart-BacklightTM Backlight Management
    • Content Adaptive Backlight Control (CABC)
    • Sunlight Readability Enhancement (SRE)
    • Fix-slope dimming control
    • Moving image and still picture modes
    • PWM duty and frequency adjustment
  • Display Control
    • 1:3 source de-multiplexer on TFT panel
    • Programmable interface to panel GIP control timing
    • Programmable source driver control timing
    • n-line dot inversion, pixel column inversion, zigzag inversion
    • Power on/off control
    • Abrupt power off control
    • Internal liquid crystal drive power supply circuit
    • Source driver:  AVDD – AVSS, AVSS – AVEE
    • VCOM drive:  VDDI – VCL
    • Interface to panel (GIP signals): VGHO – VGLO
  • External Power Supplies
    • I/O power supply VDDI: 1.65V~1.95V
    • MIPI DSI power supply VDDAM: 1.65V~1.95V
    • External flash power supply VDDI_F: 1.65V~3.6V
    • Analog power supply AVDD: 4.5V~6V
    • Analog power supply AVEE:  -6V~-4.5V
  • Output Voltage Levels
    • Source driver output voltage levels:  (GVDDP ~ +0.2V), (-0.2V~GVDDN)
    • Gamma voltage range:
    • GVDDP = 3V ~5.8V (10mV/step)
    • GVDDN = -5.8V ~ -3V (10mV/step)
    • Positive power supply voltage level for interface to panel:
    • VGHO = 5.4V~13V (100mV/step)
    • Negative power supply voltage level for interface to panel:
    • VGLO = -10V~-5V (100mV/step)
    • Common electrode output voltage level:  VCOMDC3 = -2.0V~+1.6V (10mV/step)

TrueTouchTM Touchscreen Technology

  • Robust and production proven capacitive touchscreen technology backed by over 700 granted and pending patents
  • Over 1 billion units of capacitive touch devices shipped to market
  • Screen sizes up to 6.0-inches diagonal at 4.0 mm electrode pitch
  • Sensor configuration up to 18 columns and 35 rows
  • Dedicated multi touch force sensing or capacitive button channels
  • 32-Bit ARM Cortex CPU
  • Register configurable
  • Noise suppression technologies for battery charger, RF and environmental noise
  • Reports up to 10 fingers
  • Small finger support down to 3mm
  • Refresh rate up to 120Hz
  • 1.5-mm passive stylus with palm rejection
  • Multi-touch glove: 10 finger thin glove (£1mm thick), 2 finger thick glove (£5mm thick)
  • Water rejection and two-finger wet finger tracking
  • Force sensing
  • Side Touch
  • Easy-Wake gestures for low-power screen wake up
  • Field upgrades via bootloader
  • Android™ driver support
  • SPI communication interface to external flash memory
  • I2C Communication Interface to Host
  • I2C slave data rates at 100 and 400KHz
  • Parade’s Packet Interface Protocol (PIP)
  • Gold bumped bare die for COG module
  • -30° to 75°C operating temperature range

APPLICATIONS

  • High resolution COG LTPS LCD panels with integrated multi-touch touchscreen
