TC1312V is a highly integrated LVDS touch with tcon embedded source drivers for automotive cockpit displays. The device supports displays up to 35” at 7680RGB*1260 in a multi-chip cascade configuration. On-chip support for TPMUX allows single-chip operation with excellent touch performacne up to 15.6” screen size. Its pinout is compatible with the most common footprint in the industry, greatly increasing its ease of adoption. In addition to excellent touch performance backed by Parade’s TrueTouch™ patented technology portfolio, TC1312V supports the required silicon features to minimize EMI and achieve CISPR-25 requirements for the in-cell display module. TC1312V’s unique touch sensing technology will allow us to keep touch refresh rate high and responsible while at the same time supporting Variable Refresh Rate (VRR) technology.

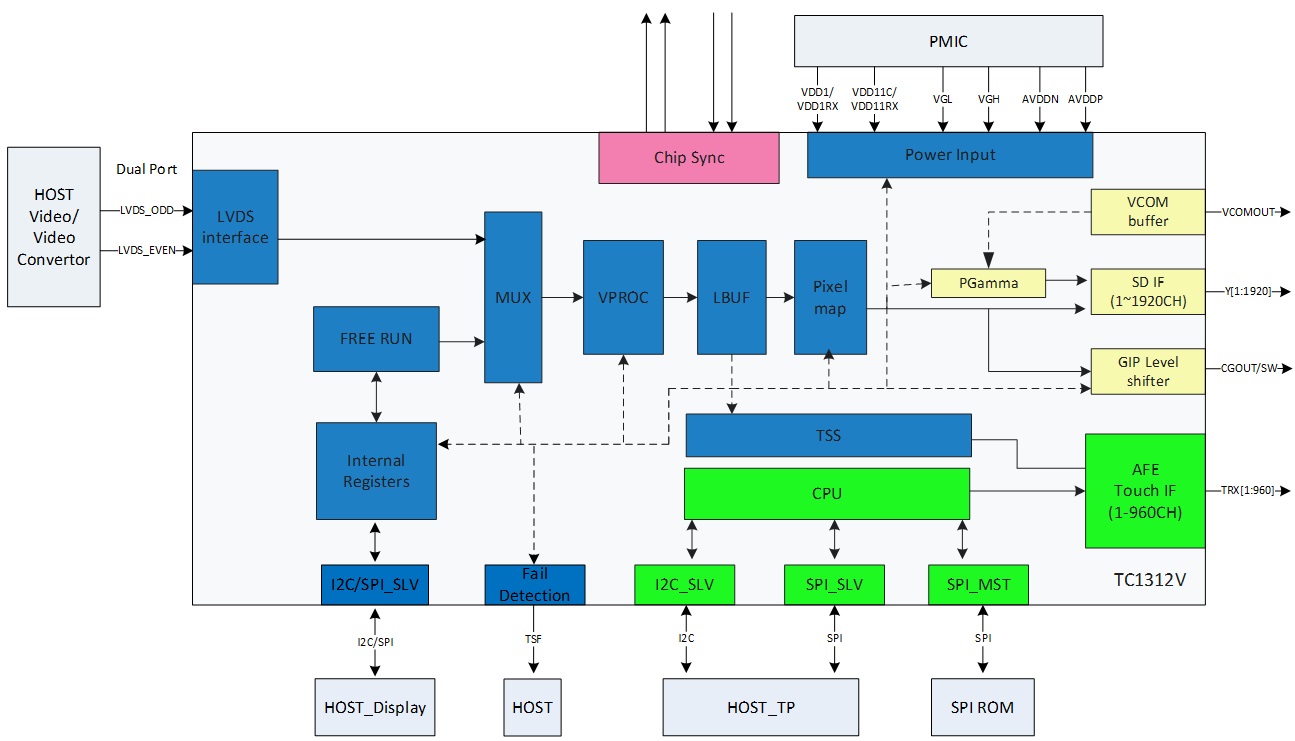

Key Features

TCON FEATURES

Display Input

  • Up to 10 LVDS data channels across 2 LVDS ports
  • Maximum 980 Mbps (maximum clock speed up to 140 MHz) per data channel

Panel Interface

  • 1-chip supports all sized panels up to 10.25” 1920×1200@60Hz, 12.3” 1920×720@60Hz, 15.6” 1920×720@60Hz with TPMUX, 18/24/30bit RGB color format
  • 2-chip support all sized panels up to 17.6” 1920×1200@60Hz & 2880×1600@60Hz, 18/24/30bit RGB color format
  • 4-chip support all sized panels up to 35” 7680×1260@60Hz, 18/24/30bit RGB color format

TCON Interface

  • Supports MUX1/MUX2/MUX3/MUX4/MUX6 pixel structures
  • Integrated TCON with programmable TCON control signal generation
  • Fully programmable Row Driver and Column Driver control timing
  • Supports Variable Refresh Rate(VRR) with fixed touch report rate

Video Processing

  • Supports LUTs storage in external SPI flash for Gamma Correction, Color Engine and FRC
  • Supports programmable BIST or Aging patterns
  • Supports special patterns detection (change inversion scheme to square inversion)

SOURCE DRIVER FEATURES

  • Supports 1920 channels driver output
  • 6-bit color depth for 64 gray scale and 8-bit color depth for 256 gray scale
  • Embedded 22 set programmable internal gamma buffers
  • Supports Main buffer chopping and Gamma buffer chopping mode
  • Supports column inversion and Zig-Zag
  • Output Voltage Levels
    • VGHO: 12V ~ 20V
    • VGLO: AVDDN-0.5V ~ -16V
  • Level Shift: 30 channels for each side (L/R)
  • VCOM
    • -3.0V ~ +0.1V, step 10mV
  • Power Saving

TOUCH FEATURES

  • Reports Multi-touch up to 10 fingers with dynamic calibration for robust touch detection
  • Touch report rate up to 180Hz
  • Single chip support screen sizes up to 15.6” with TPMUX
  • 960 touch sense signals per chip
  • Moisture rejection and wet finger tracking
  • Multi-finger glove operation
  • Noise suppression technologies
  • Supports asynchronous touch/display operation
  • Supports long-H and long-V touch sensing
  • Supports I2C and SPI with Parade’s Packet Interface Protocol

MISCELLANEOUS

  • Automotive Grade AEC-Q100 Grade 2
  • Control Interfaces
    • Two I2C slaves: one for display internal register control, another for touch report and FW download interface.
    • Four SPI interfaces: one for external flash memory, one for host processor interface, one for cascade broadcast interface and the last one is for cascade data transfer interface.
  • External Power Supplies(Optional for Internal power and External power supply)
    • VDD11C/VDD11RX = 1.1V
    • VDD1/VDD1RX = 3.3V
    • AVDDP = 4.5V ~ 7.5V
    • AVDDN= – 7.5V ~ – 4.5V
    • VGH = 12V ~ 20V
    • VGL = AVDDN-0.5V ~ -16V
    • VGH-VGL < 32V
    • VCOMDC = -3.0V ~ +0.1V

Functional safety (FuSa): ASIL-B

  • Communication I/F: I2C/SPI and a FAIL_DET or INTB_H interrupt pin to host
  • TCON/Video errors
  • Miscellaneous/Other errors
  • Touch errors

ESD

  • Human Body Model: +/- 3000V
  • Machine Model: +/- 300V
  • Charged Device Model: +/- 750V

Temperature sensor

  • Support external temperature sensor
  • On-die BJT diode temperature sensor with off-chip

Package: COG

Applications

LVDS TTED solution for automotive in-cell cockpit displays
