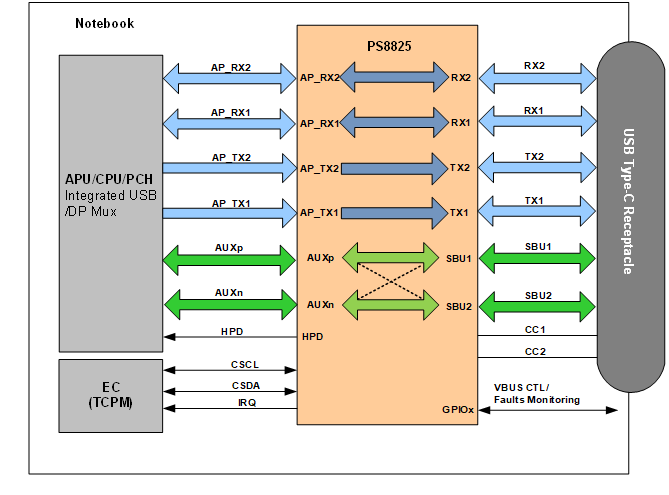

The PS8825 addresses high-speed signal switching and signal integrity requirements for the implementation of a USB Type-C (or USB-C) connector on a USB 3.2 host device that supports the VESA DisplayPort Alt Mode Standard.  The device includes an integrated TCPCI (Type-C Port Controller Interface) that works together with an external TCPM (Type-C Port Manager) to provide a complete solution for USB Type-C power delivery and port control.

FEATURES

  • Supports USB 3.2 Gen 2×2 10Gbps dual-lane operation and DisplayPort Alternate Mode up to HBR3 8.1Gbps
  • Supports USB 3.2 Gen 2 10Gbps retiming
  • Compliant with USB Power Delivery Rev. 3.0
  • Compliant to USB Type-C Port Controller Interface Specification 2.0
  • Integrated BMC baseband PHY
  • Configurable DFP/UFP/DRP support
  • MPU based USB Type-C control
  • Built-in CC logic for plug and orientation detection
  • Integrated VCONN power switch
  • Crystal Free operation – no external crystal or clock needed
  • DisplayPort 1.4a HBR3 8.1Gbps redriving with AUX automatic snooping
  • Integrated 100 Ω differential termination resistors for inputs and outputs
  • Programmable equalizer to compensate PCB losses
  • Field proven AUX interception technology for DisplayPort link training for RBR, HBR, HBR2 and HBR3
  • Very low latency, < 1ns total propagation delay
  • GPIOs for VBUS switch and other system control
  • I2C slave with IRQ# (TCPCI)
  • Support modern standby
  • Low power consumption
  • 3.3V and 1.2V power supply
  • 4.5×6.5mm 52-pin QFN RoHS compliant and halogen-free package
  • ESD: 8kV Human Body Model

APPLICATIONS

  • Notebook and desktop PCs
