PS8803 – USB-C Switch with CC Logic Controller and USB 3.1 Gen 2 Retimer

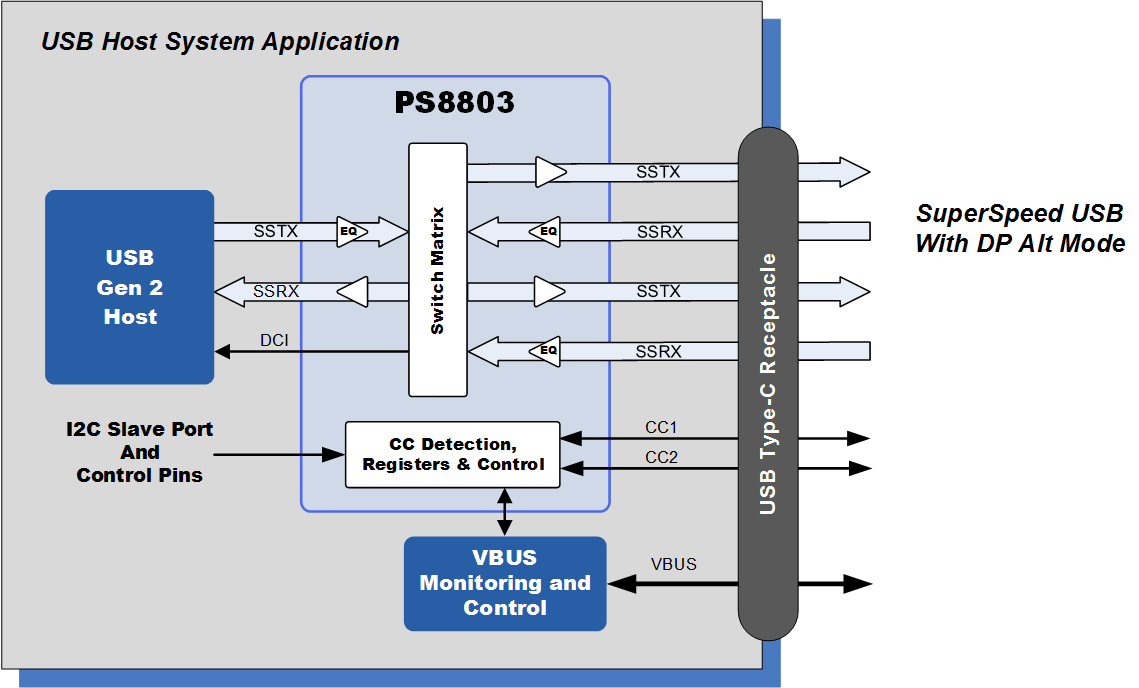

The PS8803 addresses high-speed signal switching and signal integrity requirements for the implementation of a USB Type-C (or USB-C) connector on a USB host or device that supports USB 3.1 transport data rates up to 10Gbit/sec (Gen 2). To compensate for PCB signal loss and other signal distortion, the PS8803 includes a signal retiming function.

The PS8803 also integrates a CC logic controller for Ra/Rd/Rp sensing on the CC lines and automatically switches the USB channel upon connection and orientation detection. The device also supports Intel DCI (Direct Connect Interface) for closed chassis debugging over the USB Type-C port.

APPLICATIONS

  • Smartphones and Tablets
  • Notebooks, PCs and USB Type-C host applications
  • Docks, Hub and USB Type-C device applications

KEY FEATURES

  • Flexible USB Type-C switching support for USB 3.1 Gen1 and Gen2
  • Fast Low Frequency Periodic Signaling (LFPS) enter/exit time
  • USB 3.1 Gen2 10Gbps retiming
  • Supports full USB 3.1power management with automatic power saving
  • CrystalFree operation, no external crystal or external reference clock needed
  • Adaptive and programmable equalization
  • USB Type-C partner connection and orientation detection
  • Ra detection and automatic VCONN sourcing
  • VBUS monitoring
  • Configurable power role for DFP and UFP applications
  • Configurable USB Type-C Current Advertisement for 0.9A,1.5A and 3Ain DFP mode
  • Very low latency
  • DCI support
  • Low active power consumption
  • Ultra-low standby power consumption
  • 6.5×4.5mm 52-pin QFN Halogen free RoHS Package
  • 3.3V (I/O) and 1.2V (core) power supplies
  • ESD: Human Body Mode at 4kV for all Type-C connector pins
