USB 3.0 5Gbps Bidirectional Redriver

The PS8723 is a Dual Port, bidirectional USB 3.0 redriver device that exhibits low power consumption.  It is designed to be placed within the USB 3.0 high speed signal path to improve signal integrity, enabling a longer physical media link, for example, and/or to improve reliability.  The device’s bidirectional configuration provides a high level of system integration.

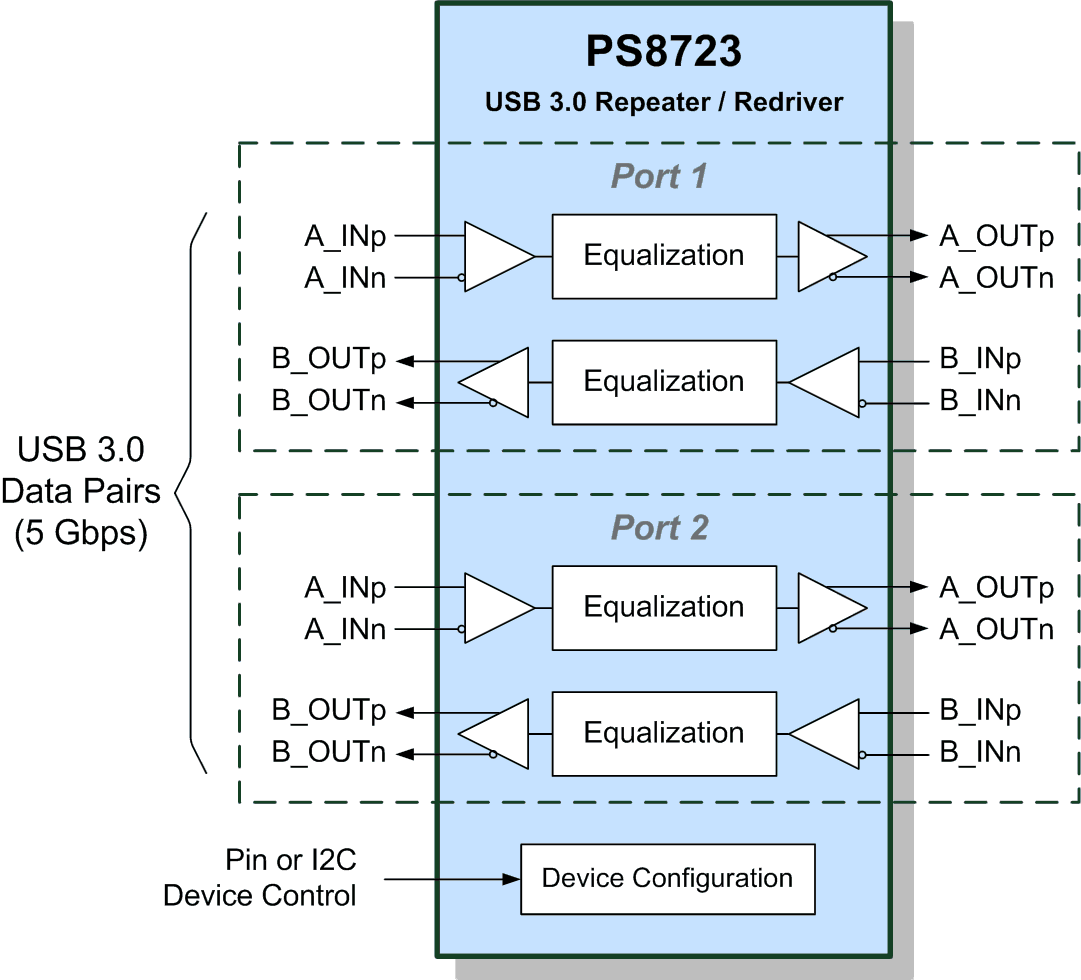

PS8723 block

Configurable on-chip input equalization and output de-emphasis circuits provide improved system signal integrity.  In addition to supporting full USB 3.0 power management, additional automatic power saving features are included such as power reduction between data packets, a suspend mode  triggered by USB device unplug or disable through Rx termination sensing, and power down.

KEY FEATURES

  • Bidirectional two-channel USB 3.0 redriver (5.0Gbps)
  • Low power consumption in active, standby, suspend (no-connect), and power down modes
  • Supports Low Frequency Periodic Signaling (LFPS) with fast LFPS enter/exit time
  • Supports full USB 3.0 power management with additional automatic power saving functions
  • I2C or Pin Configurable input equalization and output de-emphasis levels
  • Supports hot plug with Automatic Receiver Detect
  • Integrated 50Ω termination resistors on input and output
  • In-Line signal connection pins for flow-through PCB layout
  • Single Power Supply
    • PS8723A: Single 1.5V Supply
    • PS8723B: Single 3.3V Supply
  • 3x6mm 32-pin TQFN Halogen free RoHS Package
  • 0° to 85°C operating temperature range
  • ESD: Human Body Model at 8 kV

APPLICATIONS

  • Desktop and mobile personal computers
  • Docking stations
  • Servers
  • Workstations
  • Data storage systems
