PS8580V is an unidirectional, 4-channel linear redriver that supports PCIe® (PCI Express®) Gen 5, with data rates up to 32.0GT/s. PS8580V introduces an ultra-low latency path. It is ideal for automotive applications where ADAS processor utilized PCIe bus to achieve its reliable & massive data transfer tasks. PS8580V comes with very low power which contribute towards lower overall system power and less heat dissipation for the automotive applications.

PS8580V removes unwanted and potentially error-inducing signal distortion that occurs in the physical transmission interface including PCIe interconnect cables, PCB traces, and connectors. PS8580V enhances data transmission reliability and enables longer PCIe interconnect cables and/or PCB traces, enabling system scalability.  In a typical application the PS8580V is used in pairs, with one used for the downstream PCIe channels, and another one used for the upstream PCIe channels.

Key Features

  • Supports PCIe operation at 2.5GT/s, 5.0GT/s, 8.0GT/s, 16.0GT/s and 32.0GT/s

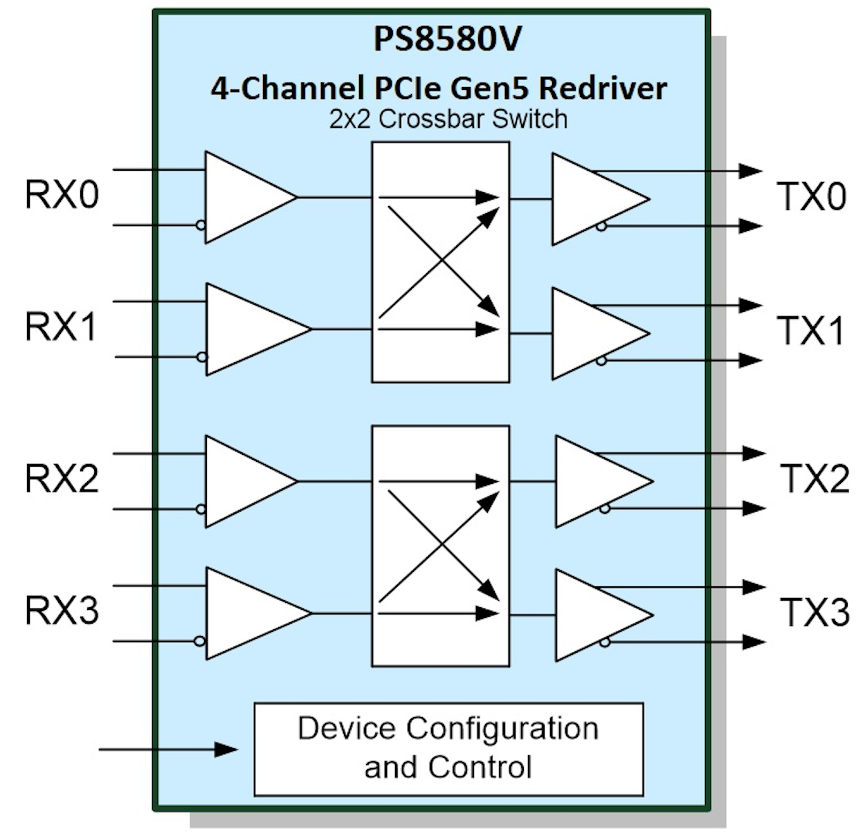

  • 2×2 crossbar switch
  • Very low operating and standby power
  • Programmable equalizer
  • Low latency
  • Low additive jitter
  • Supports L1PM feature
  • Integrated automatic squelch function
  • Supports CXL2.0 Alt mode
  • Supports SMBus/I2C configuration and external EEPROM configuration (optional)
  • Single 1.8V power supply
  • ESD: HBM 3KV
  • 2.8mm x 6mm 38-pin QFN halogen-free RoHS Package
  • Support AEC-Q100 grade2


  • Backplane, midplane, baseboard system
  • Storage and ADAS system.
  • Telematics Unit
