PS5101 – HDMI-to-MHL Transmitter

NOT RECOMMENDED FOR NEW DESIGNS

HDMI to Mobile High-definition Link (MHL) Converter

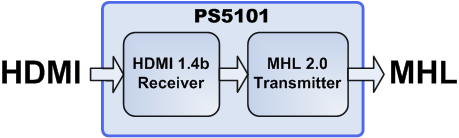

The PS5101 receives video, audio and auxiliary data in the 19-wire HDMI format and retransmits this data in the 5-wire MHL format.  The PS5101 targets mobile devices that use an SoC processor with an HDMI output.

Key Features

  • Low-power 1.2V core, low device power consumption
  • Flexible 1.8V or 3.3V I/O
  • Automatic power management
  • Ultra-low-power standby mode
  • Low EMI/RFI
  • High ESD Performance
  • 49-pin, 3.5×3.5mm WFBGA package

Applications

  • Smartphones
  • Tablets
  • Digital Cameras
  • Camcorders
  • Portable Media Players
