PS331 – 3:1 HDMI/DVI Sink Switch

3:1 HDMI/DVI Switch for Sink Device

The PS331 is an integrated 3-to-1 HDMI™/DVI switch designed for HDMI/DVI receiver or repeater applications. It integrates all system functions including the EDID shadow RAM, the DDC switch and Source device detection. The PS331 supports HDMI 1.4a devices with Deep Color up to 12 bits per component, at a data rate up to 2.25Gbps, and the HDMI 1.4a compliance spec is supported.

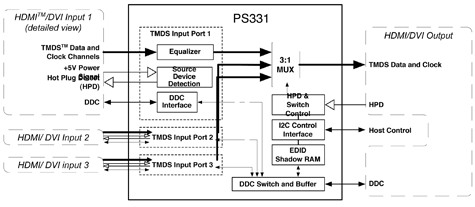

ps331-diagram

Key Features

  • Ideally suited for HDMI and DVI receiver or repeater applications
  • Enables three selectable HDMI/DVI inputs for one HDMI/DVI receiver
  • HDMI 1.4a compliant with data rates up to 2.25Gbps
  • Deep Color supported; color depths of 8, 10 and 12 bits per pixel
  • Integrated EDID shadow RAM
  • Source detection provides flexible system management
  • Integrated equalizer for each HDMI/DVI input port provides up to 17dB of cable loss compensation
  • Integrated 50ohm active receiver termination
  • Accepts AC and DC coupled HDMI/DVI transmitters
  • Integrated DDC channel multiplexer includes active buffering and 5V tolerance
  • Single 3.3V Power Supply
  • 64-pin QFN (9x9mm) or TQFP Package (7x7mm body)
  • 0°C to 70°C Operating Temperature Range
  • ESD: Human Body Mode to 8 kV

Applications

  • Digital TVs
  • A/V Receivers
  • HDMI/DVI Switch Boxes
  • Digital DVR or Set-Top Boxes
  • PC Monitors
