DP676 / DP679 — Very Low Power 2 Lane eDP 1.2 Tcons

Embedded DisplayPort v1.2 Timing Controllers, Very Low Power

DP676 and DP679 were developed with emphasis on very low power consumption, while supporting all of the necessary features of a timing controller for mobile and AIO PC applications.  The devices support eDP 1.2 allowing backlight and other panel functions to be controlled through the eDP AUX Channel.  They support a display resolution up to 1920×1200 with up to 24 bit color depth.  Back-side interface support to the LCD Source Drivers include mini-LVDS, Parade’s own SIPI® (Scalable Intra Panel Interface) CoG interface, and the support of other common CoG interface types that differentiate the DP676 and DP679.

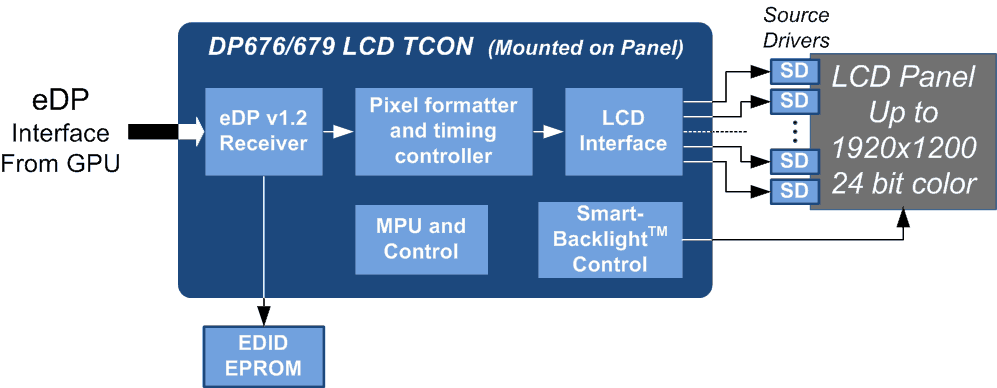

DP676-679 block

Features

  • Supports display resolutions up to 1920×1200
  • Compliant to VESA Embedded DisplayPort version 1.2
  • Includes eDP v1.2 backlight control through AUX
  • 1.62 and 2.7Gbps eDP link operation with 1 or 2 lanes
  • CrystalFree™ technology; no external clock reference required
  • Supports full and fast link training, and no link training
  • 18 or 24 color bit depth RGB format input
  • 6 or 8 component bit depth panel interface with FRC and gamma
  • Internal color engine
  • Programmable BIST and aging patterns
  • Parade’s exclusive Smart-Backlight™ dynamic backlight control for color and power optimization
  • Supports DisplayPort™ standard SSC 0.5% down spreading and additional spreading on Source Driver interface
  • Multiple panel-side interface standards supported including
    • Mini-LVDS
    • Parade’s SIPI® (Scalable Intra Panel Interface) CoG interface
    • Other common CoG interfaces
  • Supports eDP DRR/nvDPS/sDRRS power saving modes
  • ASSR display authentication support
  • ESD HBM 8kV
  • TQFN RoHs Halogen free package

Applications

  • LCD Panels for Mobile PC platforms
