DP661A – 2 Lane eDP 1.3 PSR Tcon
– Not For New Designs –
eDP v1.3 LCD Timing Controller with PSR (Panel Self Refresh) and integrated frame buffer, Up To 1920×1200 Resolution

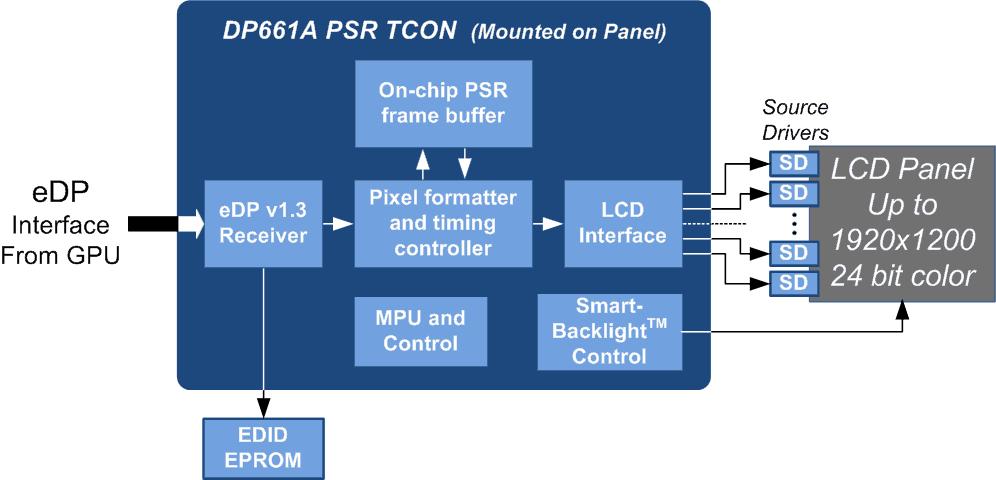

DP661A supports the PSR protocol in the Embedded DisplayPort™ Standard version 1.3 and is packaged in a cost-effective QFN package. The DP661A utilizes an integrated frame buffer to minimize power. PSR eliminates the need for the CPU/GPU to send redundant video frames during static display images as this function is allocated to the Tcon using the integrated frame buffer. This enables the CPU/GPU to intermittently enter a low-power state, enabling net system power savings and thereby extending battery life in a mobile system.
Features
- Supports display resolutions up to 1920×1200
- Compliant to VESA® Embedded DisplayPort Standard version 1.3
- Includes backlight control through AUX
- 1.62 and 2.7Gbps eDP link operation with 1 or 2 lanes
- CrystalFree™ technology; no external clock reference required
- Supports full and fast link training, and no link training
- Up to 24 color bit depth RGB format input
- 6 or 8 component bit depth panel interface with FRC and gamma
- Internal color engine
- Programmable BIST and aging patterns
- Parade’s exclusive Smart-Backlight™ dynamic backlight control for color and power optimization
- Supports DisplayPort™ standard SSC 0.5% down spreading and additional spreading on Source Driver interface
- Supports point-to-point CoG panel-side interfaces
- Supports VESA Adaptive-Sync
- Supports eDP DRR/nvDPS/sDRRS power saving modes
- ASSR display authentication support
- ESD HBM 8kV
- QFN RoHs Halogen free package
Applications
- LCD Panels for Mobile PC platforms
