PS8762 – USB-C® 5Gbps Host Switch with USB 3.1 Gen 1 / DP Alt Mode HBR3 Redriver

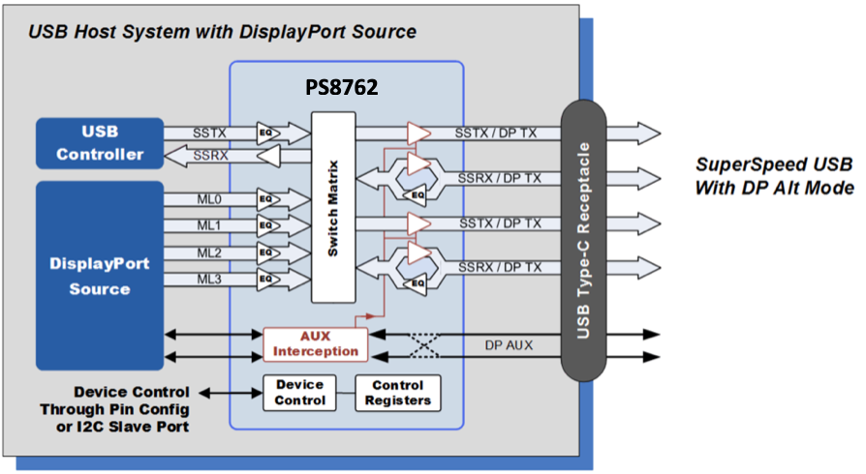

The PS8762 addresse high-speed signal switching and signal integrity requirements for the implementation of a USB Type-C® (or USB-C®) connector on a USB host device that supports the VESA® DisplayPort™ Alt Mode Standard.  It supports USB 3.1 transport data rates up to 5Gbit/sec (Gen 1), and DisplayPort data rates up to 8.1Gbit/sec (HBR3).  To compensate for PCB signal loss and other signal distortion, the PS8762 includes a signal redriving function that is implemented when transporting USB SuperSpeed data and DisplayPort data. The DisplayPort redriver function incorporates Parade’s patented AUX Channel interception technology that adjusts the high speed data driver characteristics based on link training parameters reported by the downstream DisplayPort receiver. PS8762 share the same footprint with PS8802, the co-layout design provides the flexibility for common PCBs.

Key Features

  • Flexible USB Type-C switching support for USB3.1 Gen1 (5 Gbps) and DisplayPort Alternative Mode up to HBR3 (8.1Gbps)
  • Built-in control logic for USB Type-C normal and flipped plug orientations
  • CrystalFree operation – no external crystal or reference clock required
  • USB 3.1 Gen 1 5Gbps Redriving
  • DisplayPort 1.4 HBR3 8.1Gbps Redriving
  • Field proven AUX interception technology for DisplayPort link training support for RBR, HBR, HBR2 and HBR3 link rates
  • Adaptive and programmable receiver equalization
  • Very low latency
  • DCI support
  • Low power consumption
  • Ultra-low standby power
  • 6.5×4.5mm 52-pin QFN Halogen free RoHS Package
  • 3.3V (I/O) and 1.2V (core) power supplies
  • ESD: Human Body Mode 4kV

Applications

  • Notebooks/PCs
  • Smartphones and Tablets
  • Docking stations
